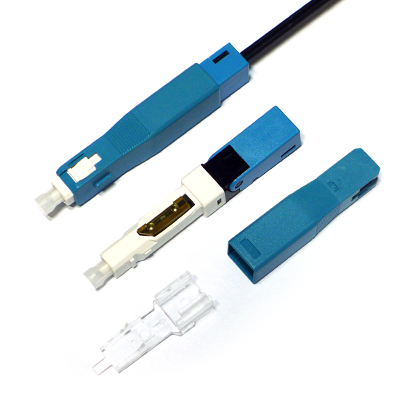

Mechanical Fiber Optic Connector-Fiber Pre-embedded
Type: E-SC250P

Name： E-SC250P<< Return to directory >>

Description：

Application FTTx，Data Room Transformation

Description

The Mechanical Field-Mountable Fiber Optic Connector (FMC) is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-Embedded Tech with superior ceramic ferrule and aluminum alloy V-groove. Also, transparent design of the side covers which allows visual inspection. It could be applied to drop cable and indoor cable.

Technical Parameters

Item	Parameter
Cable Scope	3.0 x 2.0 mm Bow-type Drop Cable 2.0/3.0 indoor cable
Fiber Diameter	125μm ( 652 & 657 )
Coating Diameter	250μm
Mode	SM
Operation Time	about 15s（exclude fiber presetting）
Insertion Loss	≤ 0.25dB（1310nm & 1550nm）
Return Loss	≤ -40dB
Success Rate	>98%
Reusable Times	>10 times
Tighten Strength of Naked Fiber	>5 N
Tensile Strength	>50 N
Temperature	-40～+85℃
On-line Tensile Strength Test (20 N)	△ IL ≤ 0.3dB
Mechanical Durability（500 times）	△ IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction, three times total)	△ IL ≤ 0.3dB

Easy operating. The connector can be directly used in ONU, also with fasten strength more than 5 kg, it is widely used in FTTH project of network revolution. It also reduces the use of sockets and adapters, and save cost of project.

With 86 standard socket and adapter, the connector makes connection between drop cable and patch cord. The 86 standard socket provides complete protection with its unique design.
