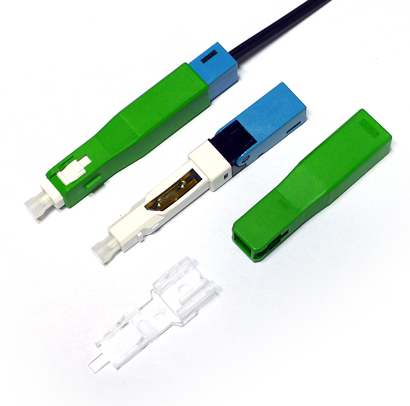

Mechanical Fiber Optic Connector-Fiber Pre-embedded Tech
Type: E-SC250P-APC

Name： E-SC250P-APC<< Return to directory >>

Description：

Application FTTx，Data Room Transformation

Description

1. Twin end-face of pre embedded fiber is polished in the factory.

2. Fiber optics is aligned in V-groove through the ceramic ferrule.

3. Side cover design provide complete preservation of the matching liquid.

4. Ceramic ferrule with pre-embedded fiber is polished to APC.

5. Length of the FTTH cable is controllable

6. Simple tooling, easy operation, portable style and reusable design.

Technical Parameters

Item	Parameter
Cable Scope	3.0 x 2.0 mm Bow-type Drop Cable
Fiber Diameter	125μm ( 652 & 657 )
Coating Diameter	250μm
Mode	SM
Operation Time	about 15s（exclude fiber presetting）
Insertion Loss	≤ 0.25dB（1310nm & 1550nm）
Return Loss	≤ -40dB
Success Rate	>98%
Reusable Times	>10 times
Tensile Strength	>5 N
Tighten Strength of Coating	>10 N
Teperature	-40～+85℃
On-line Tensile Strength Test (20 N)	△ IL ≤ 0.3dB
Mechanical Durability（500 times）	△ IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction, three times total)	△ IL ≤ 0.3dB
