Description

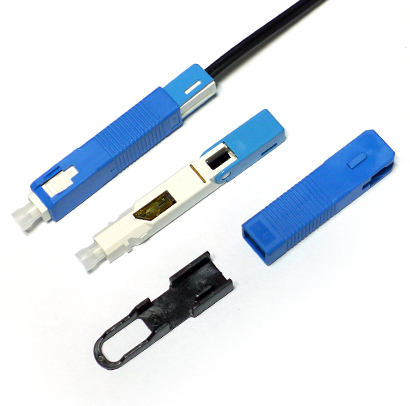

The Mechanical Field-Mountable Fiber Optic Connector (FMC) is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-Embedded Tech with superior ceramic ferrule and aluminum alloy V-groove. Also, transparent design of the side covers which allows visual inspection.
Technical Parameters
|
Item |
Paramete |
|
Cable Scope |
3.0 x 2.0 mm Bow-type Drop Cable |
|
Fiber Diameter |
125μm ( 652 & 657 ) |
|
Coating Diameter |
250μm |
|
Mode |
SM |
|
Operation Time |
about 15s（exclude fiber presetting） |
|
Insertion Loss |
≤ 0.25dB（1310nm & 1550nm） |
|
Return Loss |
≤ -40dB |
|
Success Rate |
>98% |
|
Reusable Times |
>10 times |
|
Tighten Strength of Naked Fiber |
>5 N |
|
Tensile Strength |
>50 N |
|
Temperature |
-40～+85℃ |
|
On-line Tensile Strength Test (20 N) |
△ IL ≤ 0.3dB |
|
Mechanical Durability（500 times） |
△ IL ≤ 0.3dB |
|
Drop Test（4m concrete floor, once each direction, three times total） |
△ IL ≤ 0.3dB | |
