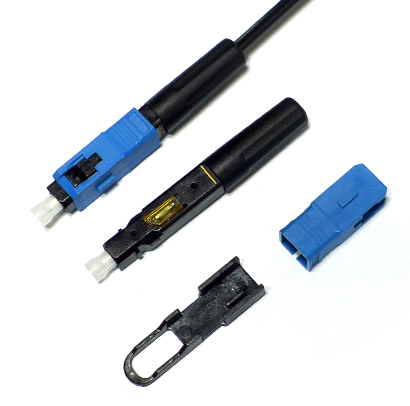

Mechanical Fiber Optic Connector-Fiber Pre-embedded Tech
Type: ME-SC250P-LW

Application FTTx，Data Room Transformation

Name： ME-SC250P-LW<< Return to directory >>

Description：

Description

1. Screw boot clamping.

2. Transparent side Cover, visible for Inspection.

3. Specific coating stripper/cutting guide way.

4. Suitable for narrow installation space.

5. Applicable to bow-type drop cable and 2.0/3.0 indoor cable, telecom cable.

Technical Parameters

Item	Parameter
Cable Scope	3.0 x 2.0 mm Bow-type Drop Cable 2.0/3.0 indoor cable Telecom cable
Fiber Diameter	125μm ( 652 & 657 )
Coating Diameter	250μm
Mode	SM
Operation Time	about 15s（exclude fiber presetting）
Insertion Loss	≤ 0.25dB（1310nm & 1550nm）
Return Loss	≤ -40dB
Success Rate	>98%
Reusable Times	>10 times
Tighten Strength of Naked Fiber	>5 N
Tensile Strength	>50 N
Temperature	-40～+85℃
On-line Tensile Strength Test (20 N)	△ IL ≤ 0.3dB
Mechanical Durability（500 times）	△ IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction, three times total)	△ IL ≤ 0.3dB
