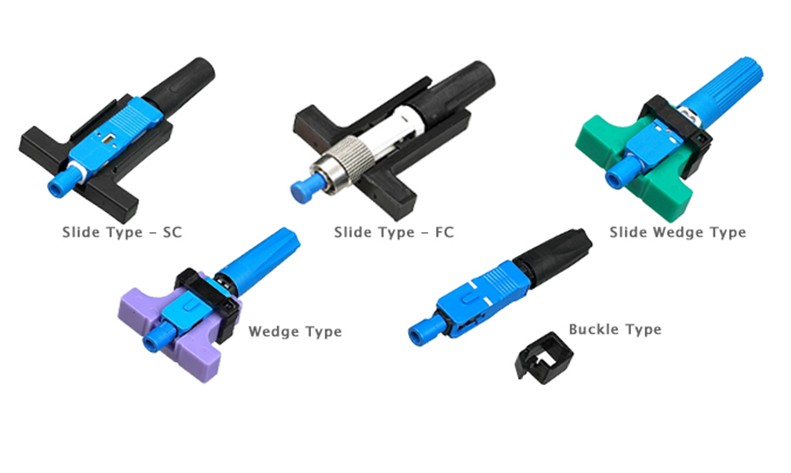

Quick Assembly Connector
NameQuick Assembly Connector<< Return to directory >>
Description

◆ Can provide a quick and easy termination of fibers in the field.

◆ Both SC single mode and multi mode connector options are available for 900 micron and 3mm drop cable application.

◆ Allowing the installer to terminate and make connection in 3 minutes in the field.

◆ This connector system doesn't need any requirement such as epoxy, adhesive and costly curing

Features

●Field installable, Cost effective, User friendly

●No epoxy and polishing required

●Quick and easy fiber termination in the field

●Visual indication of proper termination

●Reliable and superior optical performance

Parameter

Specifications

 Connector Type

SC Type

 Insertion Loss

( Max 0.5dB)

 Reflection

Typical < -40 dB

 Tensile Strength

 900um

5N

 3.0mm

30N

 Connector Durability

< 0.2 dB (After 200 mating)

 Operating Temperature

-40℃ ~ +85℃
