SC-UPC Ordering choice

▶ Fan-out patch cord
▶ Simplex / Duplex
Pigtail
▶ 12 color Cable
▶ Loose & Tight Buffer
▶ Boot Color
▶Cable Size
0.9mm 1.8mm 2.0mm
2.4mm 3.0mm
▶Packing Style
▶Label Style
▶ G652D G657
▶OFNR & LSZH & OFNP

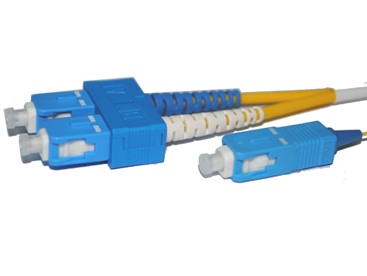

产品名称： SC-UPC　浏览次数：2945 次 << 返回目录 >>
产品说明：

Features

●High return loss

●Low insertion loss

●Telcordia style boots

●Compliance with TIA/IEA,IEC,Rohs


Applications

●     CATV,Metro,LANs

●     Active device termination

●     Telecommunication networks

●     Industrial,medical & military


Specifications

UPC( Standard )

UPC( Special )

Insertion Loss

≤0.3dB

≤0.2dB

Return Loss

≥50dB

≥55dB

Operating Temperature

   –40 ℃ to +75 ℃

Durability

  ≤0.2 dB typical change , 500 matings

Available Wavelengths

SM=1310 & 1550nm
