产品说明：
| Item No.: |
PC5L-08I |
| DESCRIPTION： |
19” cabinet China 16A Power PDU

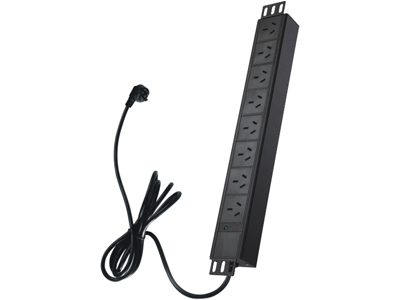

Picture shows 8 way PDU
Model: PC5L-08I
Socket/Outlet Standard: GB1002/10A
Outlet QTY: 8 way
Power Input Style: Left end single input style
Brackets Installation Style: Frontal installation style
Cable plug: GB1002/16A Control functions: LED indicator;Master switch
Protection functions: No
Shell colour & Material: Black;Aluminium modular design
Cable specification: 3x1.55mm2x3M;standard 3 metre power cord
Electrical Rating: 16A 250VAC
Maximum load current: 16A
Maximum load capacity: 4KW
Size LxWxH : 482.6X44.4X62㎜
Operating temperature : 0℃-55℃
Relative humidity: 10-90%
Explanation
China 16A power distribution units are the standard choice in sever and networking 19" racks
connecting directly to the targeted equipment,they are available as China 16A to power or C19 plug.
All PDU products of Betterbell are modularized ,customer can choose the relative modules and power input cables.
All functional modules are adopted PC/ABS alloy,hot change temperature reach to above 120℃,
fire-retardant characteristic accords with UL94-VO standard. | |
