产品说明：
| Item No.: |
PE5L-08I |
| DESCRIPTION： |
19” cabinet iec320 c19 Power PDU

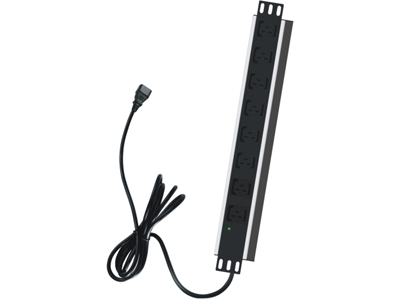

Picture shows 8 way horizontal PDU
Model: PE5L-08I
Socket/Outlet Standard: IEC320 C19
Outlet QTY: 8 way
Power Input Style: Left end single input style
Brackets Installation Style: Frontal installation style
Cable plug: IEC320 C20
Control functions: Single power indicator
Protection functions: No
Shell colour & Material: White;Aluminium modular design
Cable specification : 3x1.55mm2x3M;standard 3 metre power cord
Electrical Rating: 16A 250VAC
Maximum load current:
Maximum load capacity: 4KW
Size LxWxH: 482.6X44.4X62㎜
Operating temperature: 0℃-55℃
Relative humidity: 10-90%
Explanation
IEC320 C19 power distribution units are the standard choice in sever and networking 19" racks
connecting directly to the targeted equipment,they are available as 16A to IEC320 C20 plug.
All PDU products of Betterbell are modularized ,customer can choose the relative modules and power input cables.
All functional modules are adopted PC/ABS alloy,hot change temperature reach to above 120℃,
fire-retardant characteristic accords with UL94-VO standard. | |
