产品说明：
| Item No.: |
PG1L-08I |
| DESCRIPTION： |
19” cabinet DIN（Germany）Power PDU

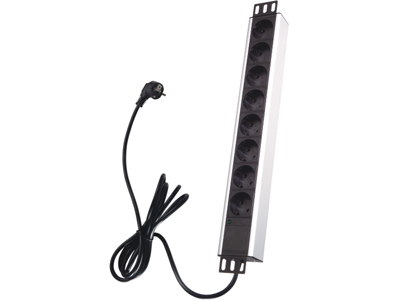

Picture shows 8 way PDU
Model: PG1L-08I
Socket/Outlet Standard: DIN49440
Outlet QTY : 8 way
Power Input Style : Left end single input style
Brackets Installation Style : Frontal installation style
Cable plug : DIN49441
Control functions : Single power indicator
Protection functions : No
Shell colour & Material: White;Aluminium modular design
Cable specification : 3x1.55mm2x3M;standard 3 metre power cord
Electrical Rating : 16A 250VAC
Maximum load current : 16A
Maximum load capacity : 4KW
Size LxWxH : 482.6X44.4X62㎜
Operating temperature : 0℃-55℃
Relative humidity : 10-90%
Explanation
Germany power distribution units are the standard choice in sever and networking 19" racks
connecting directily to the targeted equipment ,they are available as 16A to Gemany or C19 plug.
All PDU products of Betterbell are modularized,customer can choose the re lative modules and power input cables.
All functional modules are adopted PC/ABS alloy,hot change temperature reach to above 120℃ ,
fire-retardant characteristic accords with UL94-VO standard. | |
